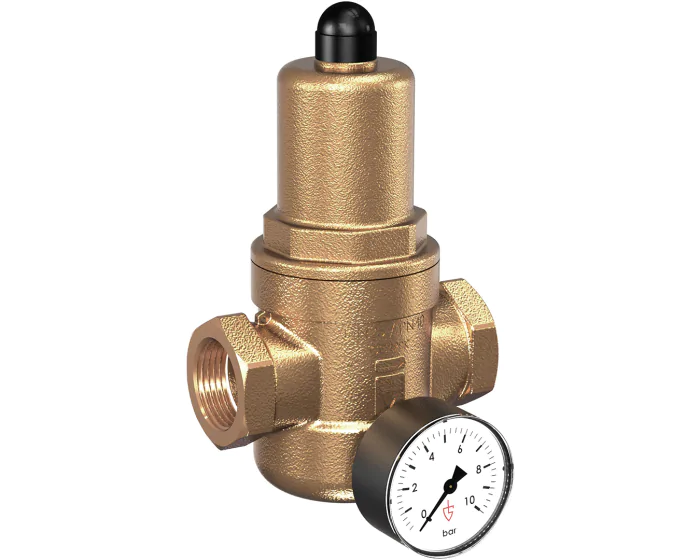

The pressure reducing valve Type 681-F made of gunmetal with threaded ends is used for pressure reduction in water, drinking water and compressed air supply systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 375.0 |
| Sealing | EPDM |
| Gasket | EPDM |
| Kv (m³/h) | 3.30 |
| Body material | Bronze CC 499K |
| Downstream pressure range (bar) | 1 / 8 |
| PS (bar) | 25 |
| Connections | BSP FF |
| TS max (°C) | 95 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze CC 499K DN15 - 1/2'' | 246842 | S1011709 |
€87.41
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' | 246843 | S1011710 |
€96.57
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' | 246844 | S1011711 |
€114.97
(excl. btw)
|
add to cart |
